Eaton Souriau Trim Trio

The TRIM TRIO® series provides a unified contact platform across multiple connector types, helping to simplify supply chains and support a wide range of industrial interconnect applications.

The system incorporates three contact technologies including machined, stamped and formed, and high-speed, which are fully interchangeable across the series. This allows seamless upgrades, reduces the need for tooling changes, and ensures flexibility in design and maintenance.

Download the Eaton Souriau Trim Trio Catalogue here PDF Souriau Circular Connectors

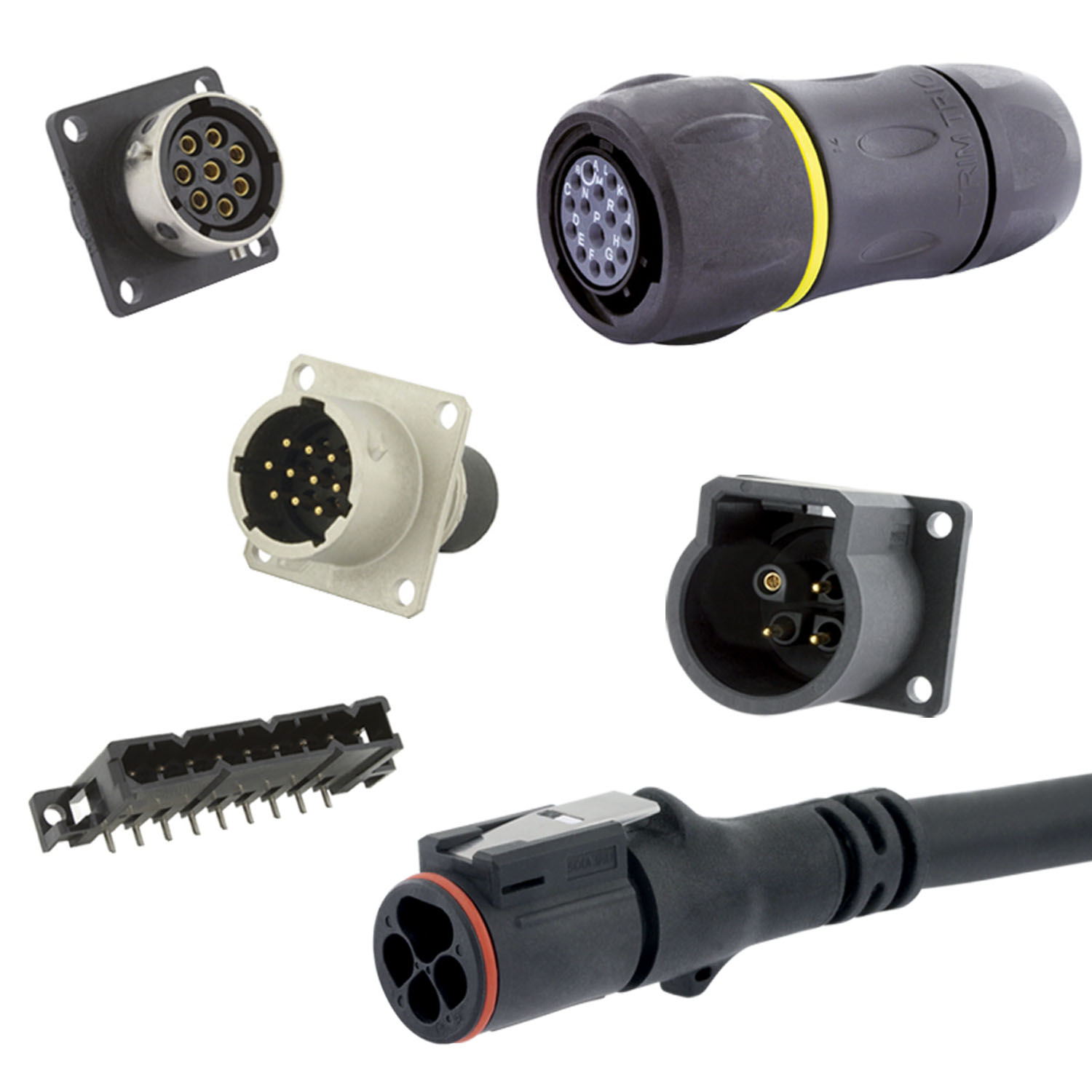

Eaton Souriau Trim Trio Connectors

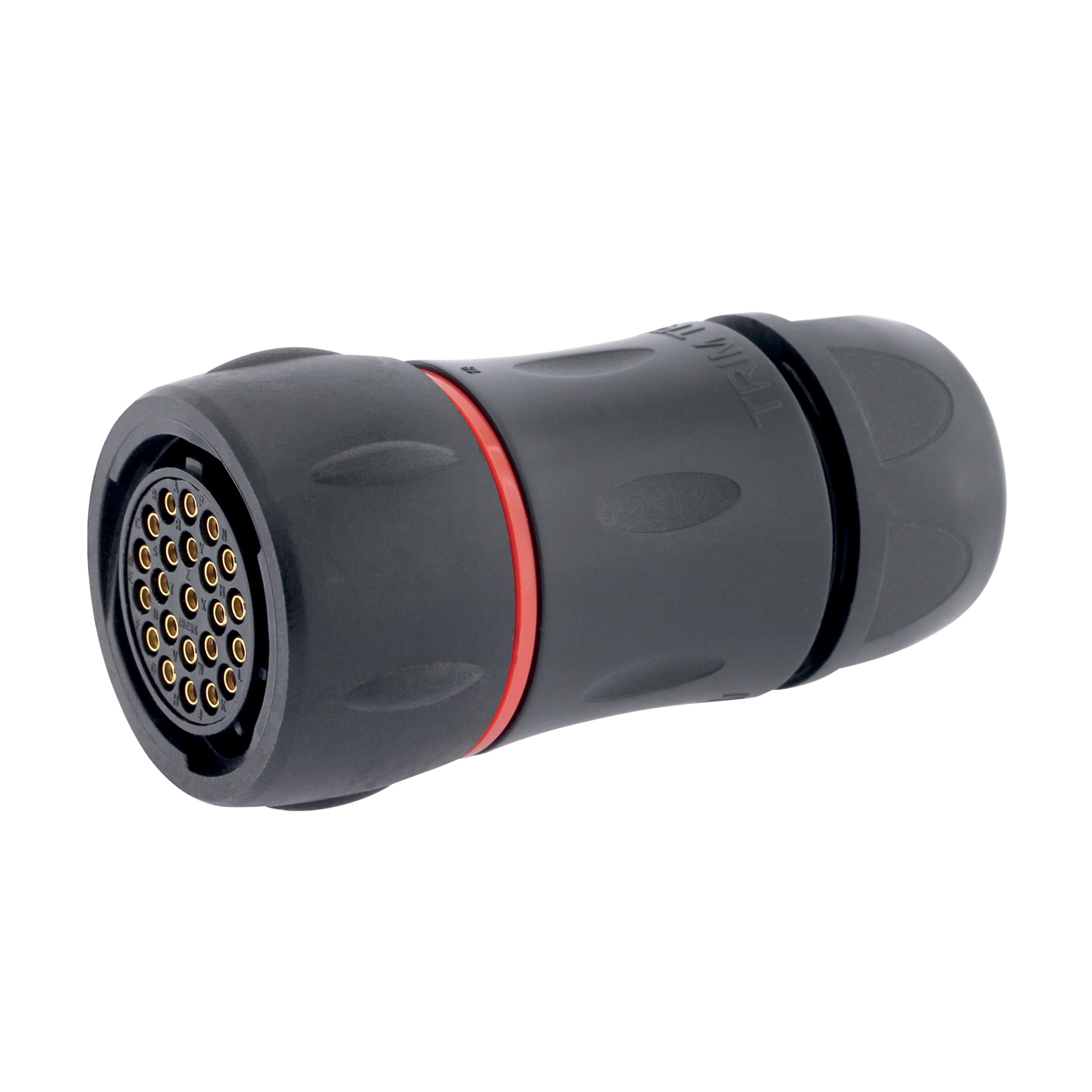

UTS Series:

  • Lightweight Full plastic circular connectors
  • 1/3-turn bayonet coupling
  • Waterproof (IP68/IP69K) High performance sealing
  • 250 mating cycles

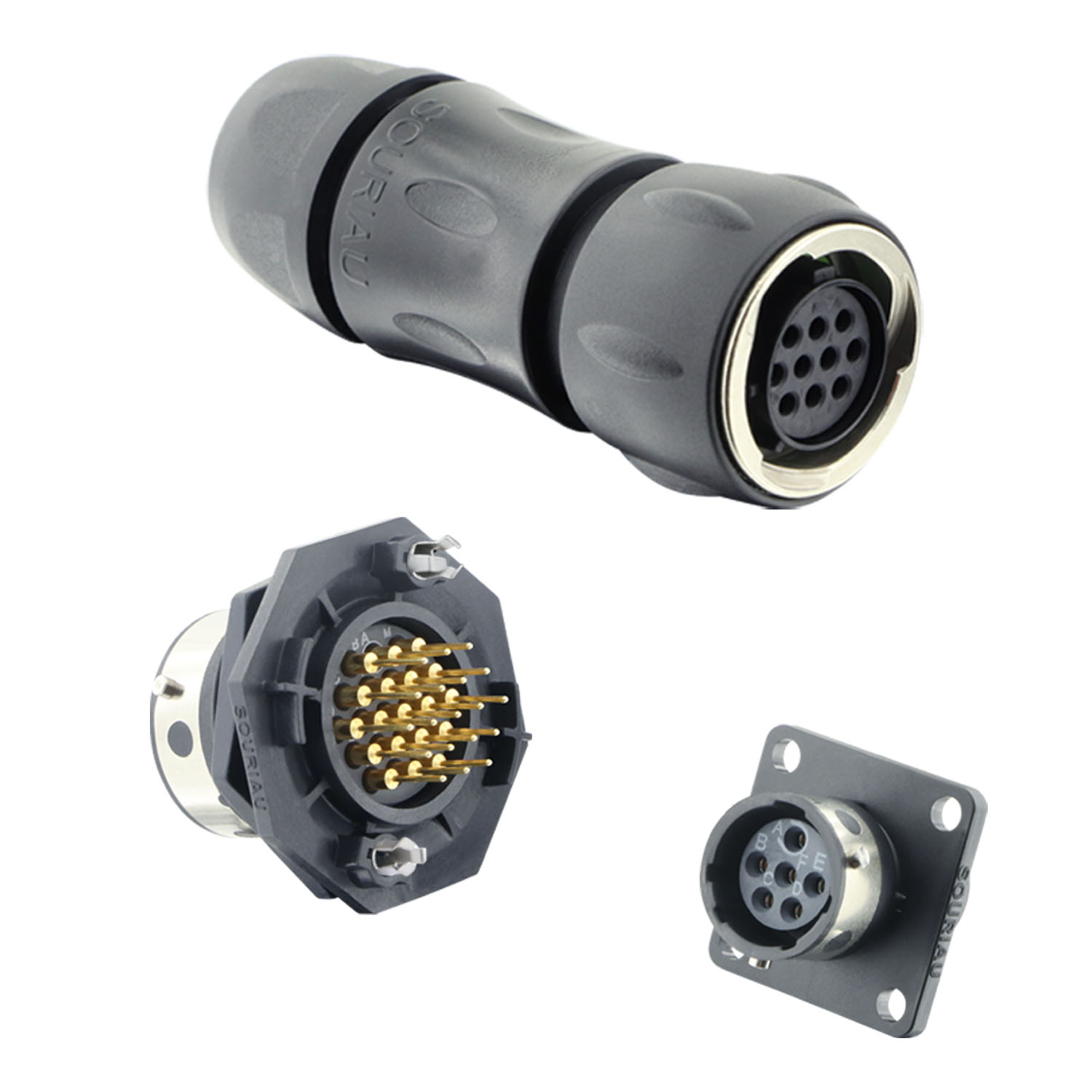

UTG/UTGX Series:

  • Rugged heavy-duty circular connectors for outdoor use
  • Quick-mating bayonet lock
  • Sealed to IP68/IP69K and UV-resistant
  • Shock and vibration resistant

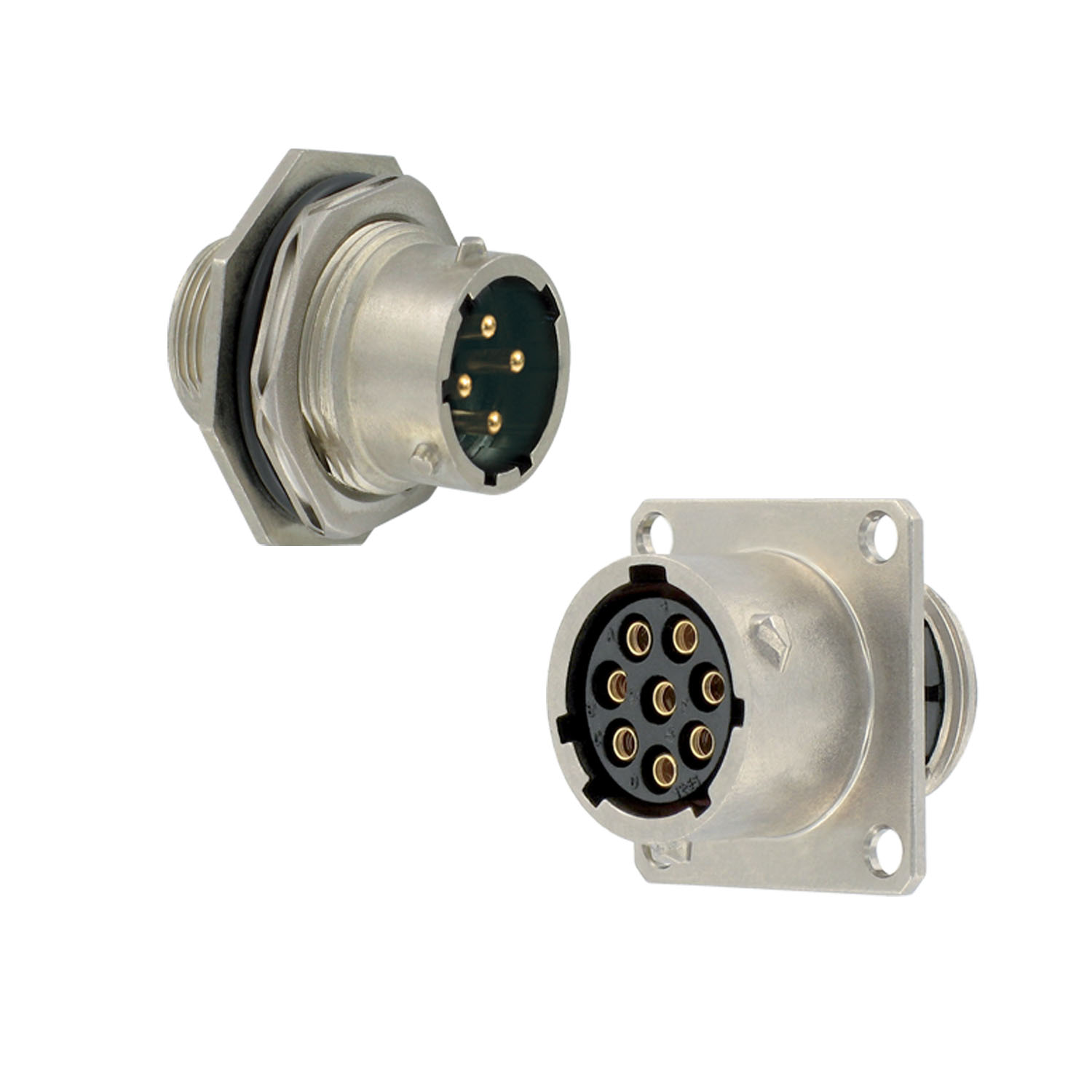

UTO Series:

  • Robust metal circular connectors with full EMI/RFI shielding
  • IP68/IP69K when mated
  • Available in zinc/aluminum alloys, stainless steel, and brass
  • High resistance to vibration and shock

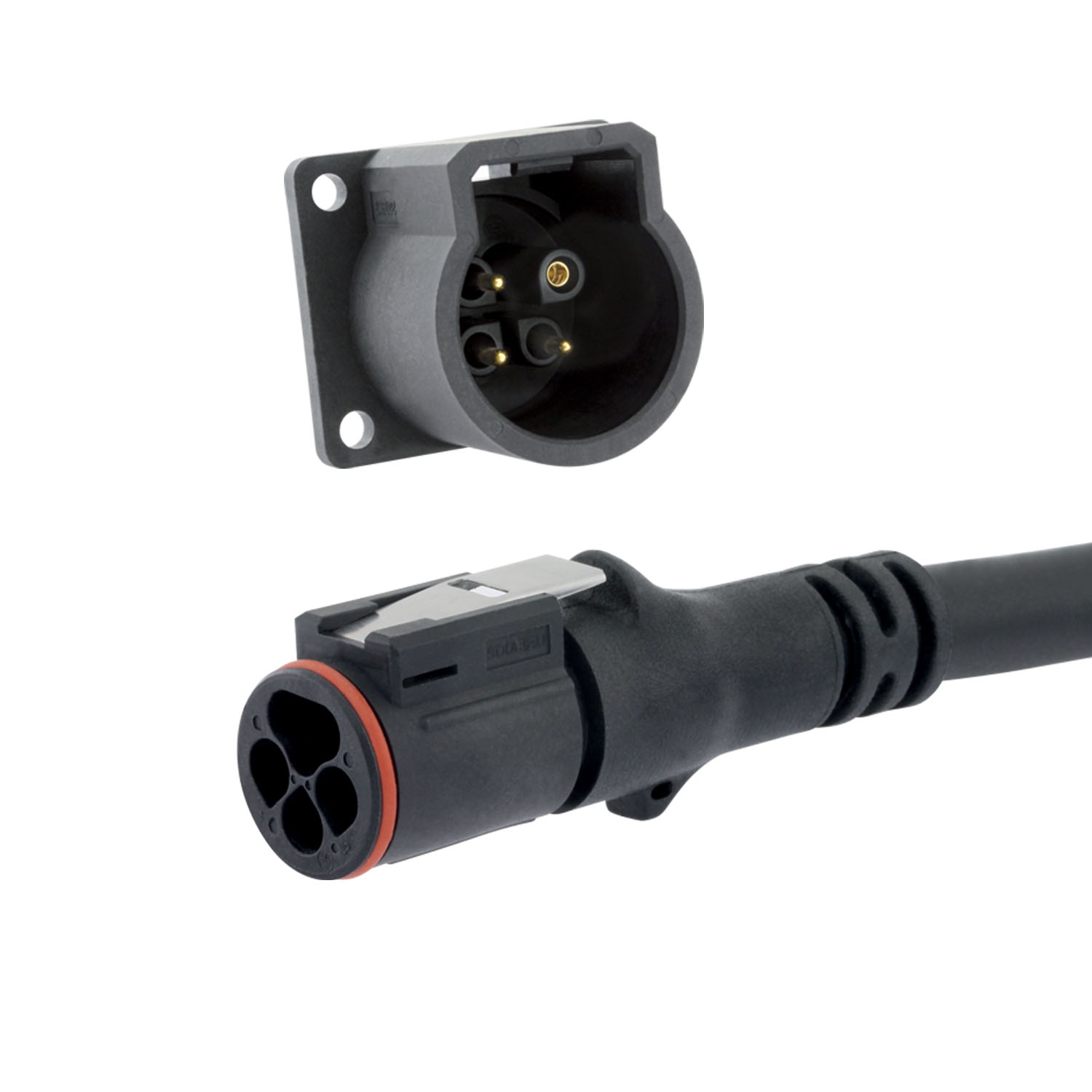

UTL Series:

  • Plastic push-pull circular style connectors
  • Operating temperature: -40° +105°C
  • UV resistance and Waterproof sealed to IP68/IP69k
  • Standards: UL94V0 / UL94HB

SMS Series:

  • Plastic push-pull circular style connectors
  • Operating temperature: -40° +105°C
  • UV resistance and Waterproof sealed to IP68/IP69k
  • Standards: UL94V0 / UL94HB
