ITT Cannon Micro Connectors

ITT Cannon manufacture a full range of cable and PC board-level MDM Micro connectors. Their versatile portfolio of Micro connectors includes a wide range of shell styles and configurations including rectangular, circular, quick disconnect, high speed signal, filter, hermetic, mixed signal packages and strip-style.

Ideally suited for Defence, Aerospace and Industrial applications where small, lightweight and reliable interconnects are required.

Download the ITT Cannon Microminiature catalogue here:

ITT Cannon Microminiature Catalogue.

Micro D

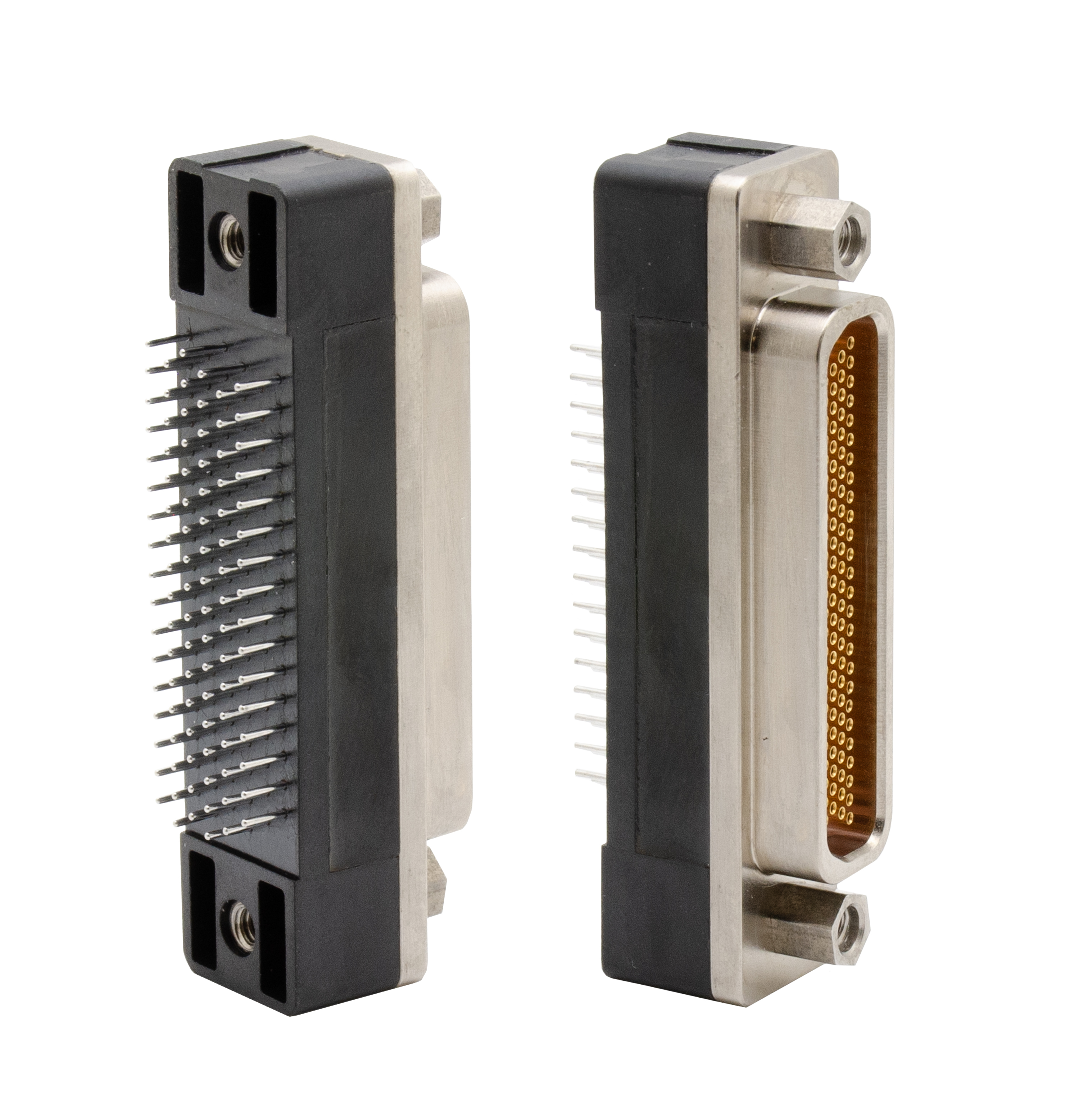

MDM-PCB Micro-D:

Designed to MIL-DTL-83513 specifications
Straight, right angle and verticle mount PCB terminations
High density, high reliability board-to-board and board to cable applications
Positive coupling with locking hardware, Jackpost mounting for with locking hardware available
Suitable for defence, aerospace, soldier Modernisation, ordnance, communications, IFE and cabin systems, avionics and control systems

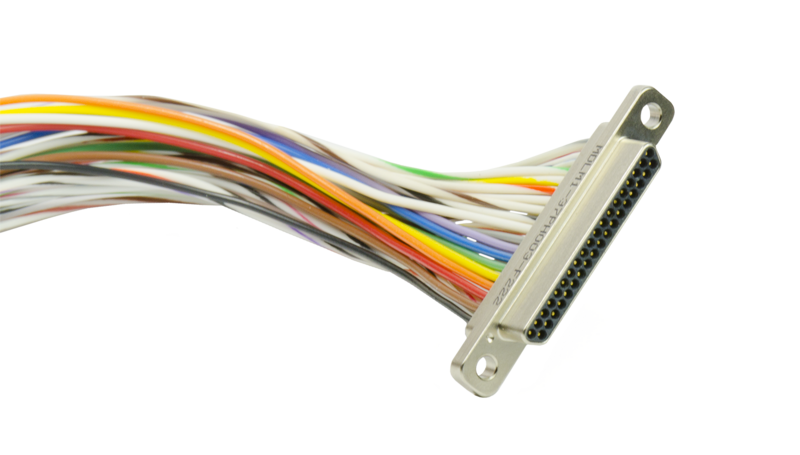

High Temperature Micro MDM/MDLM:

Based on MIL-DTL-83513 specifications
Available in standard or low profile, cable-to-cable and board mount configurations
Operating temperature: -55℃ to +200℃
Micro Twist Pin recessed into plug insulators
Suitable for defence, aerospace, space and satellites, Oil and Gas drilling and exploration and transportation and industrial

Ultra high temp Micro D — Ultra High Temp Micro

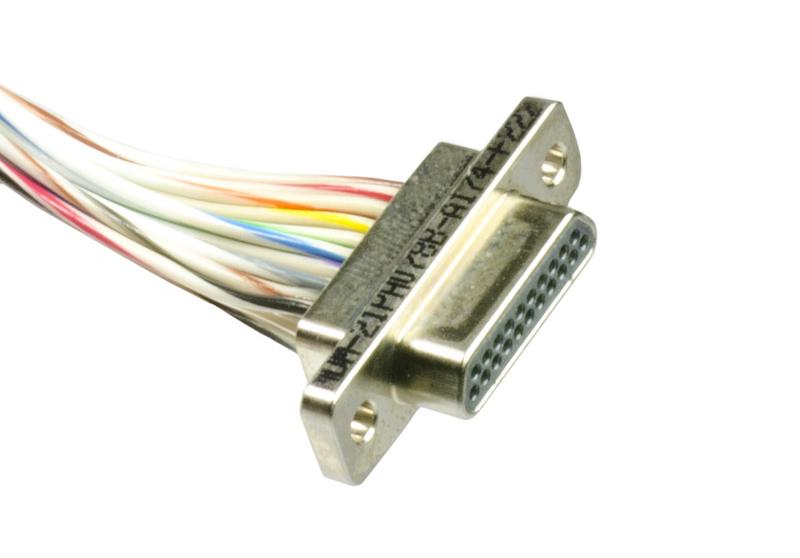

Ultra-High Temperature Micro-MDM:

Exceeds MIL-DTL-83513 specifications
Operating temperature: -55℃ to +230℃
High temp liquid crystal polymer insulator material
Micro Twist Pin and Socket contacts
Stainless steel shells
Suitable for defence, aerospace, space and satellites, Oil and Gas drilling and exploration and transportation and industrial

Micro MDM integrated backshells — Mirco MDM with integrated backshells Catalogue

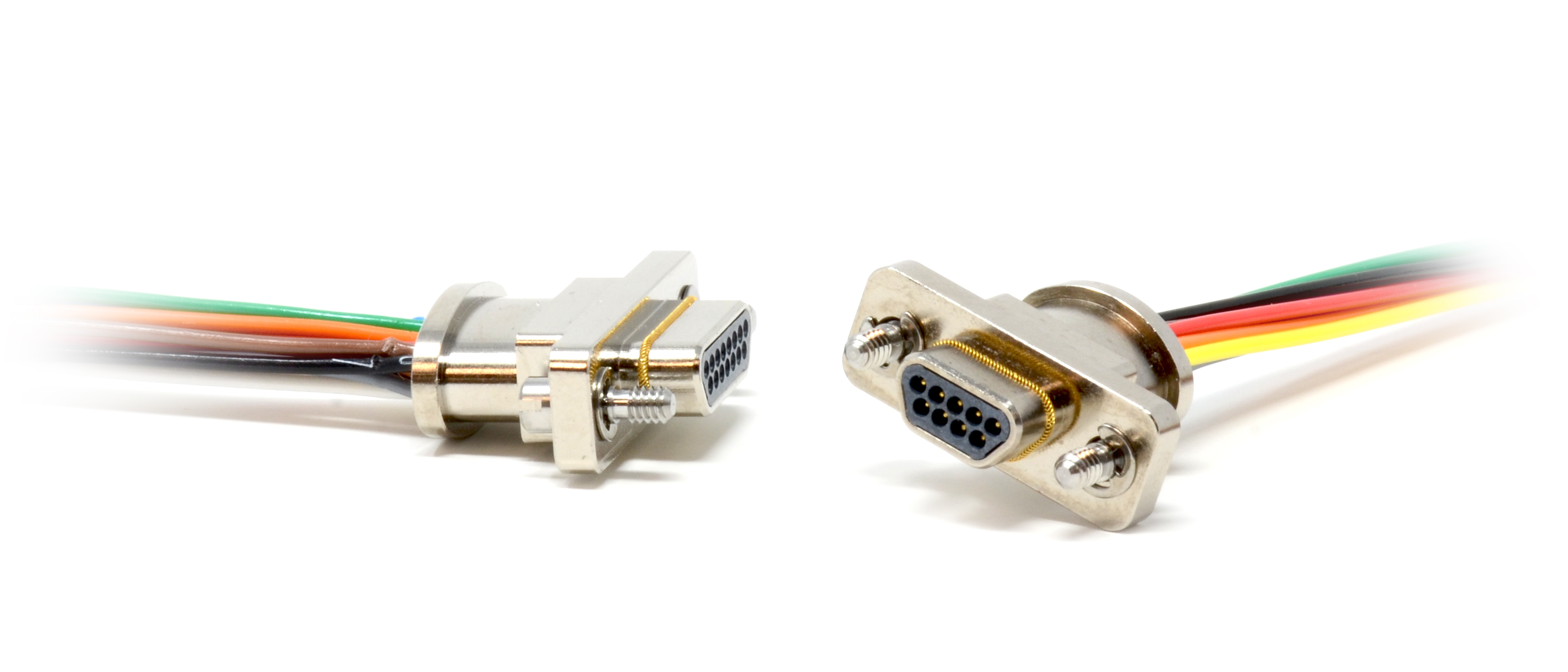

Micro MDM with integrated Backshells:

Meets MIL-DTL-83513 specifications
EMI protection with gold plated ground spring
9 - 51 contact positions
5 Plating options include RoHS Compliant Electroless Nickel and Gold over Nickel
Suitable for Aerospace, defence, IFE and cabin systems, avionics and control systems, military ground vehicles, UAVs, oil an gas
