TE Connectivity Wildcat Connector Series
The Deutsch Wildcat Connectors from TE Connectivity are higher-density connectors offering exceptional performance. Built to withstand harsh environments, they are shock and vibration-proof, have IP67 sealing and can handle temperature extremes. The series offers micro and ultra-lightweight variants offering space and weight savings in confined spaces.
Suitable for aerospace, defence and transportation applications, the latest black zinc nickel plating version is ideal for use in UAV (unmanned aerial vehicle).
Contact Aerco to find out more about availability and pricing and how we can support your project with TE products.

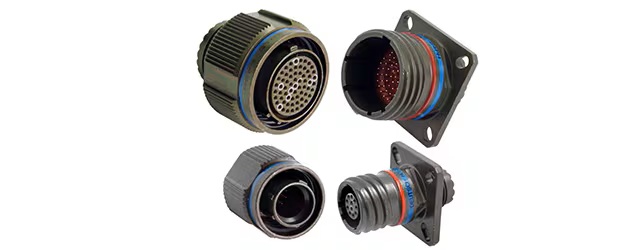

Wildcat 38999:
- Built to MIL-DTL-38999 Series 3 specifications
- Rear-removable crimp and PCB contacts
- Mounting and rear accessory options available enabling either backshell or cable braid and boot termination
- High level of shock and vibration resistance
- Temperature range: -65°C to +175°C (cadmium) -65°C to +200°C (nickel)
- Ideal for defence and aerospace applications

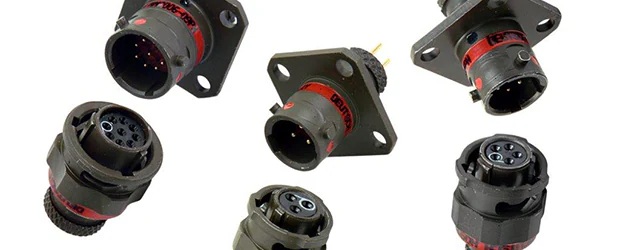

Wildcat Micro Connectors:
- High-density and compact connector that is MIL-STD-1553 protocol compatible
- Four contact layouts with 3, 5 or 9 contacts
- Quick locking bayonet coupling or threaded option
- Temperature range: -55°C to +175°C
- Fully sealed cable and mating interface with IP67 rating
- Applications include aerospace and defence

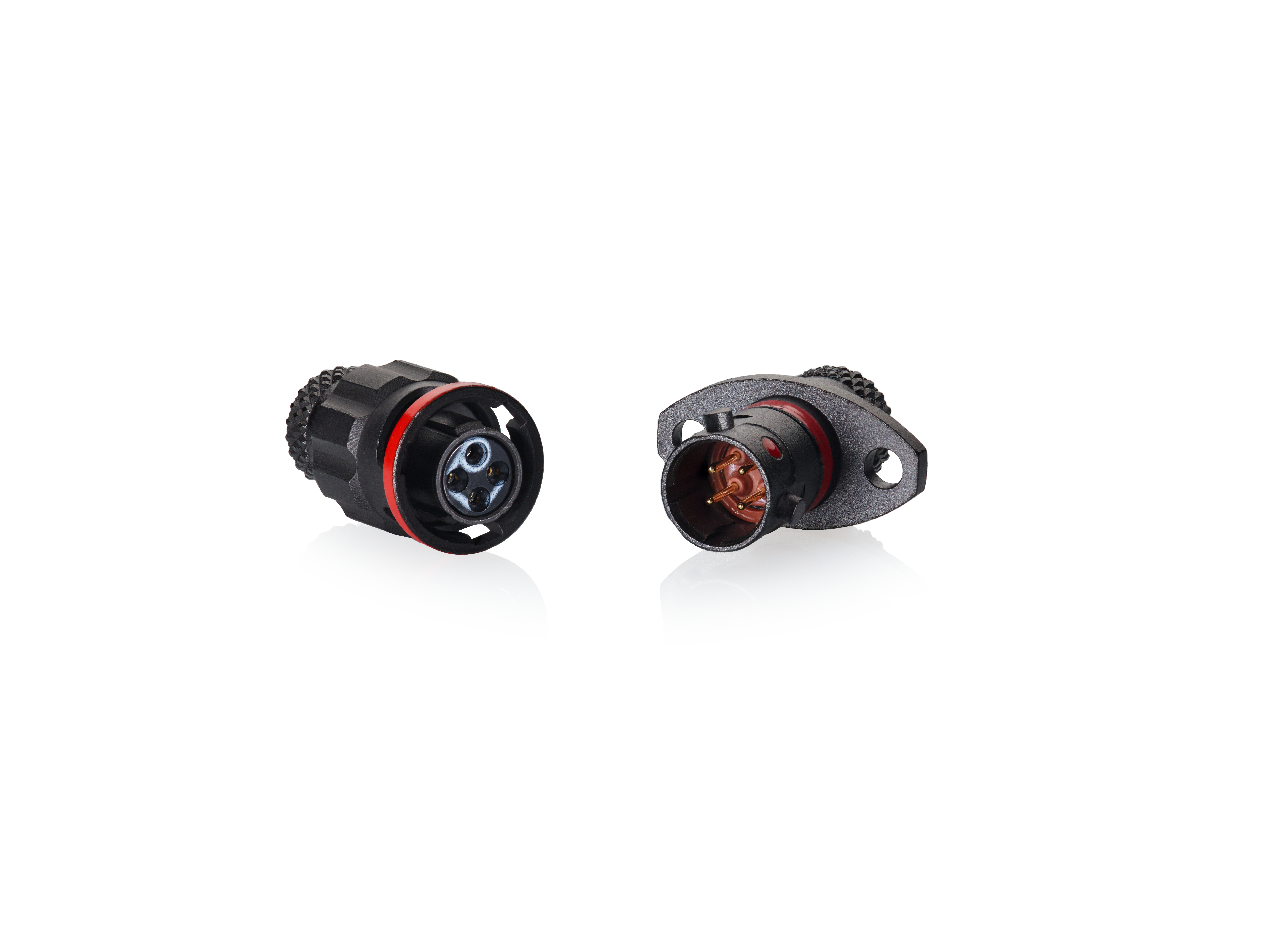

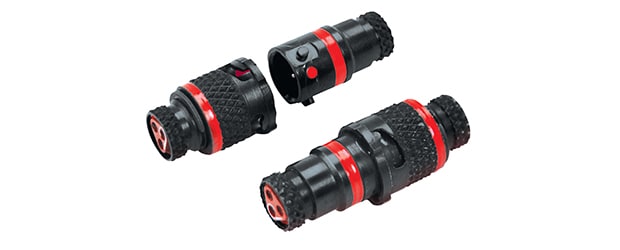

Wildcat UAV Micro Xtra Lite HE (UAV) Series:
- Compact, ultra lightweight design for maximum space savings
- Excellent in harsh environments
- Positive locking coupling mechanism
- Conductive black zinc nickel finish
Wildcat UAV Micro Lite HE (UAVL) Series:
- Small and compact design for sensor applications
- Excellent environmental resistance
- Positive locking coupling mechanism
- Conductive black zinc nickel finish
Wildcat UAV Mini series:
- High-density connector in three shell styles
- Intermateable with existing LN29729 (Mil-C 38999 Series 1.5) and Pan 6433-2 style connectors
- Excellent environmental resistance
- Filter and hermetic options available
- Wildcat option also include a heavy duty version (UAVHD) and a double density version (UAVDD)
